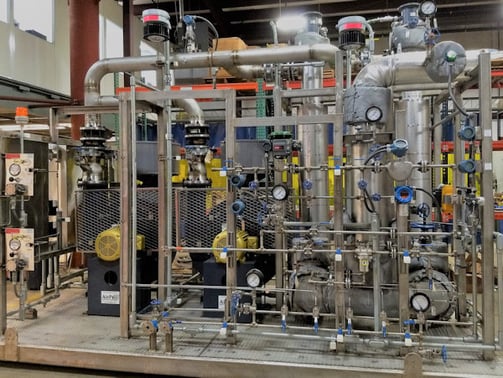

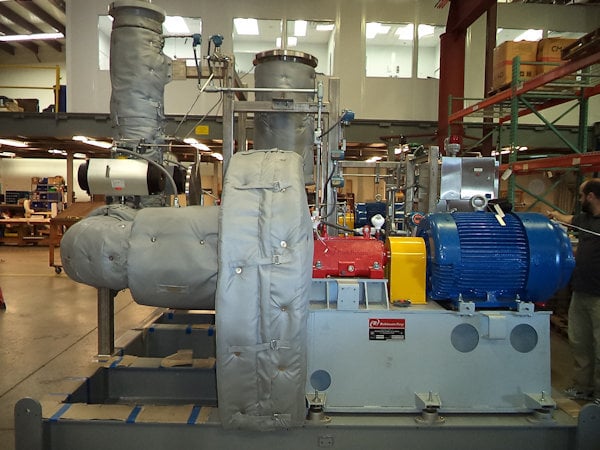

Ammonia Process Control Equipment
Vector Systems is dedicated to excellence in all facets of the design and manufacturing of Ammonia Process Control Units (APCU). Because of this it is easy to recognize the level of quality and performance for which Vector is widely known.
- Anhydrous Ammonia processing
- Tank fed systems for >5 lbs. / hour
- Bottle units (<5 lbs. /hour)
- Redundant 100% fans standard
- Dilution air flow transmitters
- Ammonia flow processing to include
- Inline strainers w/ DP gauges or transmitters
- Gauges
- ESD shutoff valve
- Mass flow transmitter
- Control valve (with block and bypass valves)
- Check valves
- All stainless steel piping construction
- Complete PLC control or DCS configuration

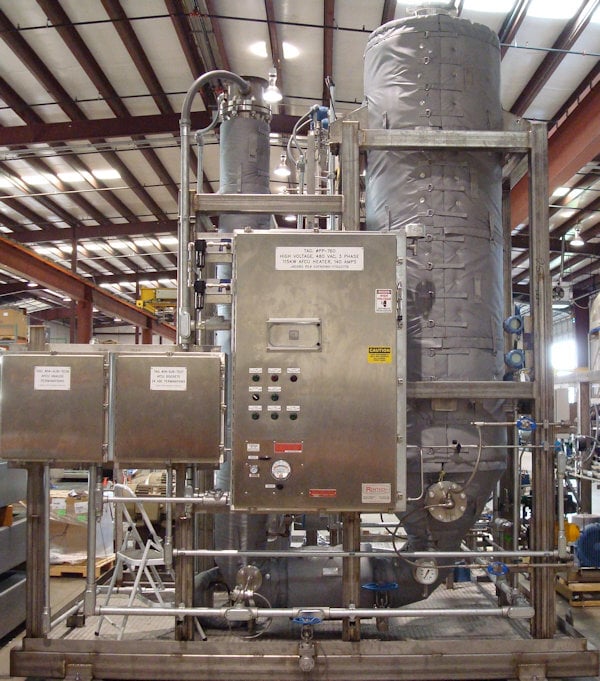

- Aqueous Ammonia processing
- Electric heaters
- Recirculation type
- 50-750 lbs. / hour capacity and larger
- Redundant 100% fans standard
- Dilution air temperature and flow transmitters as required
- Ammonia flow processing to include
- Inline strainers w/ DP gauges or transmitters
- Gauges
- ESD shutoff valve
- Mass flow transmitter
- Control valve (with block and bypass valves)
- Check valves
- All stainless steel piping construction
- Complete PLC control or DCS configuration
